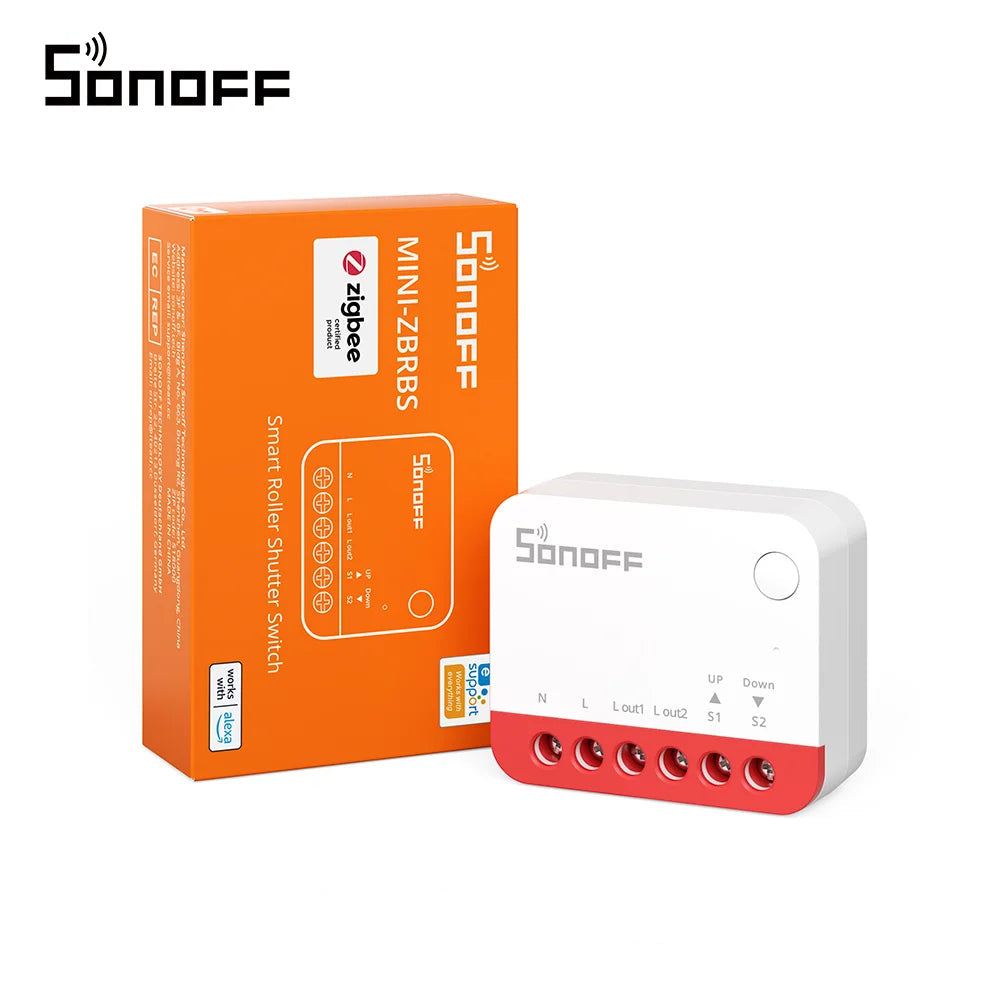

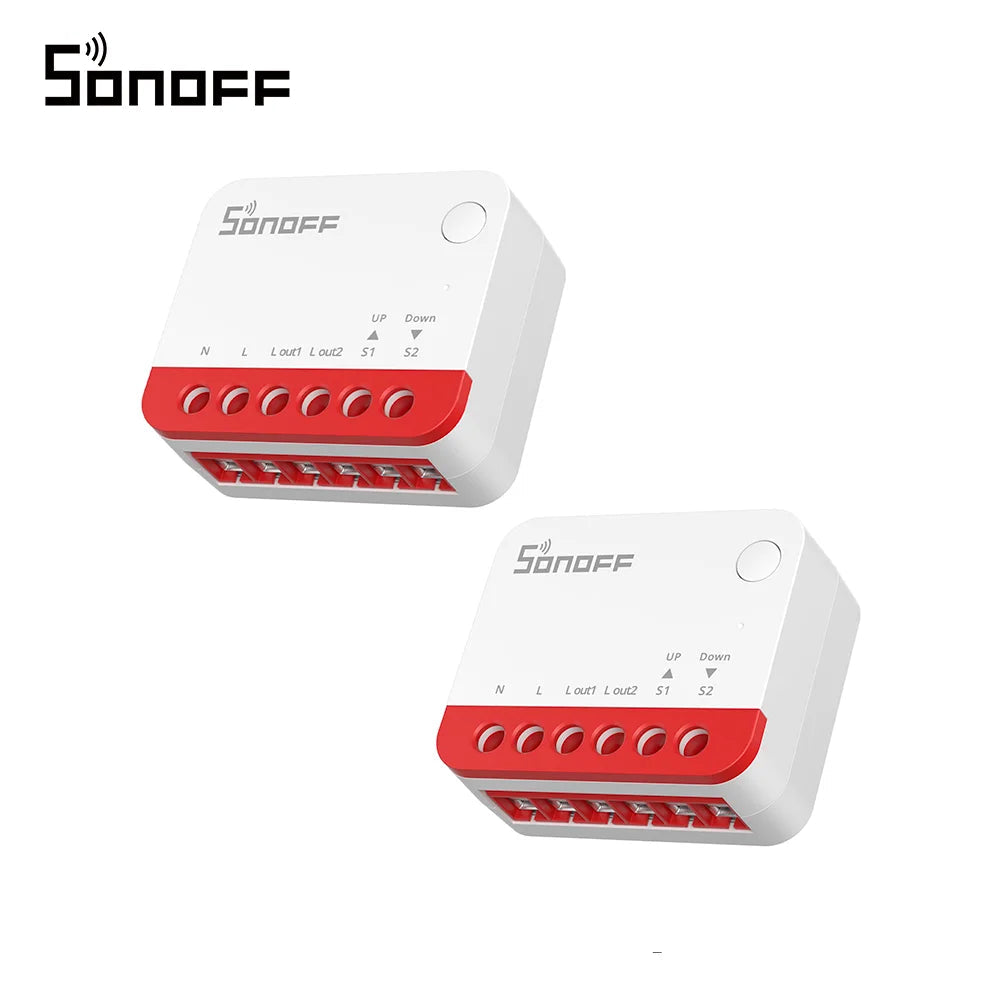

SONOFF Zigbee Smart Roller Shutter
SONOFF Zigbee Smart Roller Shutter
Couldn't load pickup availability
Smart Zigbee roller shutter module designed for reliable control of motorized blinds and curtains. Enables smooth open/close operation, percentage positioning, and smart automation via Zigbee hub and eWeLink app.
Supports percentage positioning, local scene linkage, curtain calibration, and signal boosting via Zigbee mesh network.
Technical data
Model: SONOFF MINI-ZBRBS Smart Roller Shutter Switch
Type: Zigbee smart roller shutter / curtain control module
Protocol: Zigbee 3.0 (requires Zigbee hub / bridge)
Voltage: AC 100–240V ~ 50/60Hz
Max load: Up to 1A motor load (roller shutter motor)
Frequency: Zigbee 2.4GHz
Range: Zigbee range up to 10–30 m indoors (mesh-dependent)
Dimensions: Approx. 39.5 × 32 × 18.4 mm
IP rating: IP20 (indoor use only)
