SPECIFICATIONS

Brand Name: CENFAYA

Certification: ce,ROHS

Choice: yes

Feature 1: RF DIMMING

Feature 2: PUSH DIMMING

Feature 3: APP VOICE SMATR CONTROL

Features: AC Triac Dimming

Hign-concerned Chemical: None

Item Type: Dimmers

Material: ABS

Max. Load Power: 300W

Model Number: GL-SD-001

Warranty: 2 YEARS

semi_Choice: yes

ZIGBEE 3.0 AC Triac Dimmer With Push Dimming Switch Brightness Control AC 110V 220V 230V TUYA Smatr LED Dimmer 2.4G RF Remote

MODEL NO:GL-SD-001

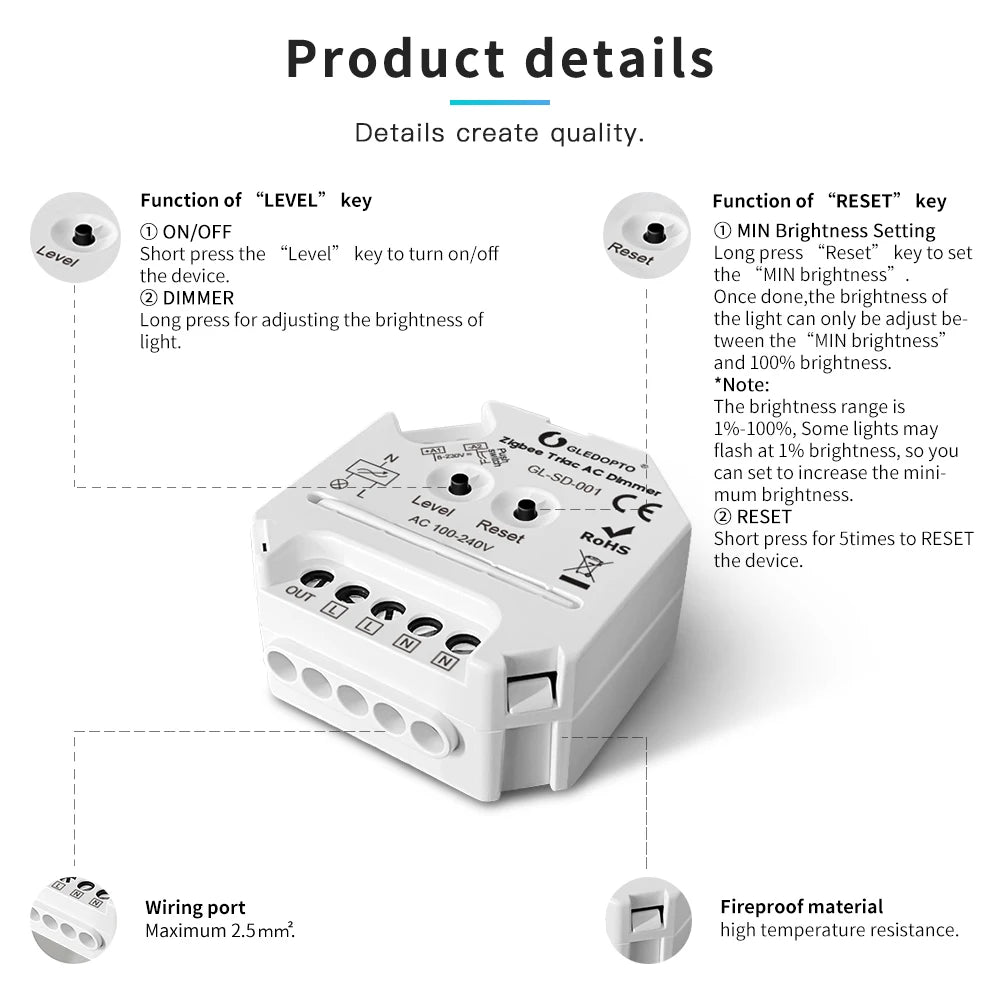

Feature

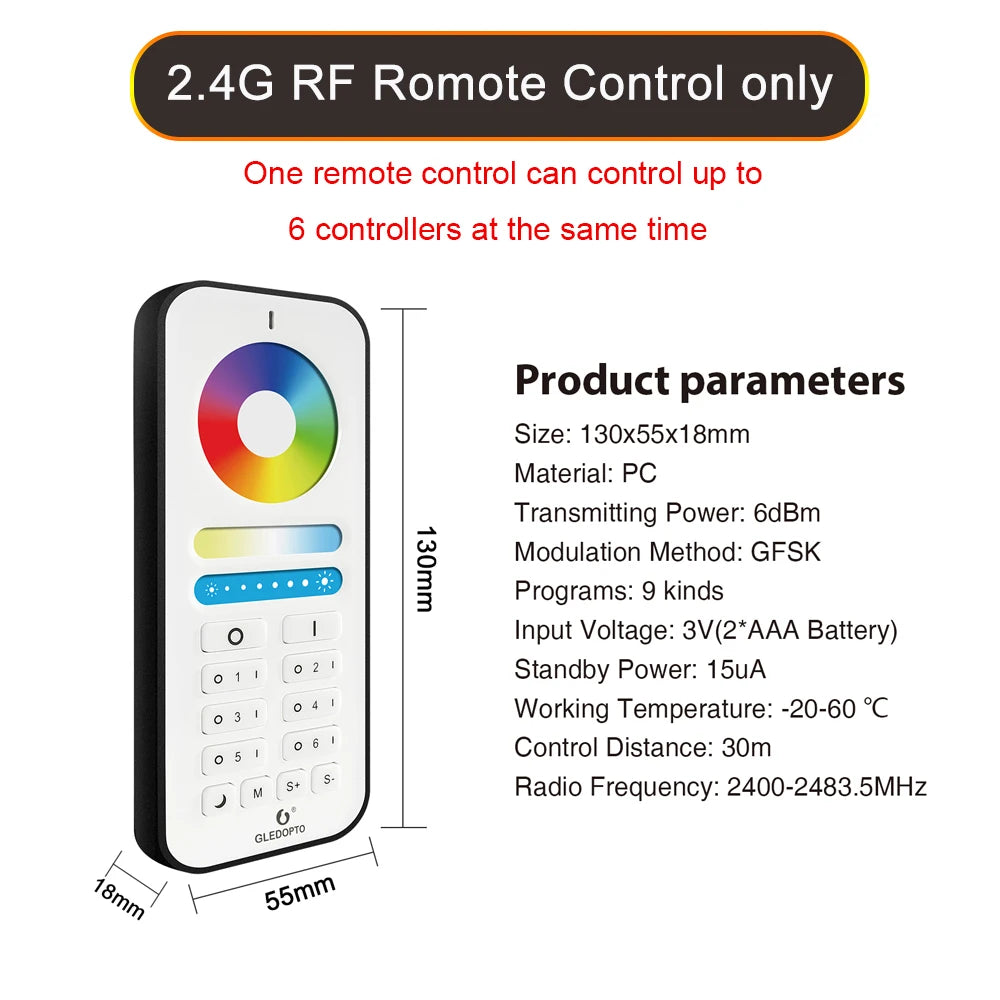

◼Multiple controlling ways, APP, Voice, Push Switch, Press Button, 2.4G RF Remote Control.

◼Trailing edge dimming design, anti-interference, soft power on/off, good for long term use of lights.

◼ Max 30pcs ZigBee remoters controllable through touchlink pairing.

◼ ABS flame retardant material shell, safe for application.

◼ Screw terminals design, easy and reliable for connection.

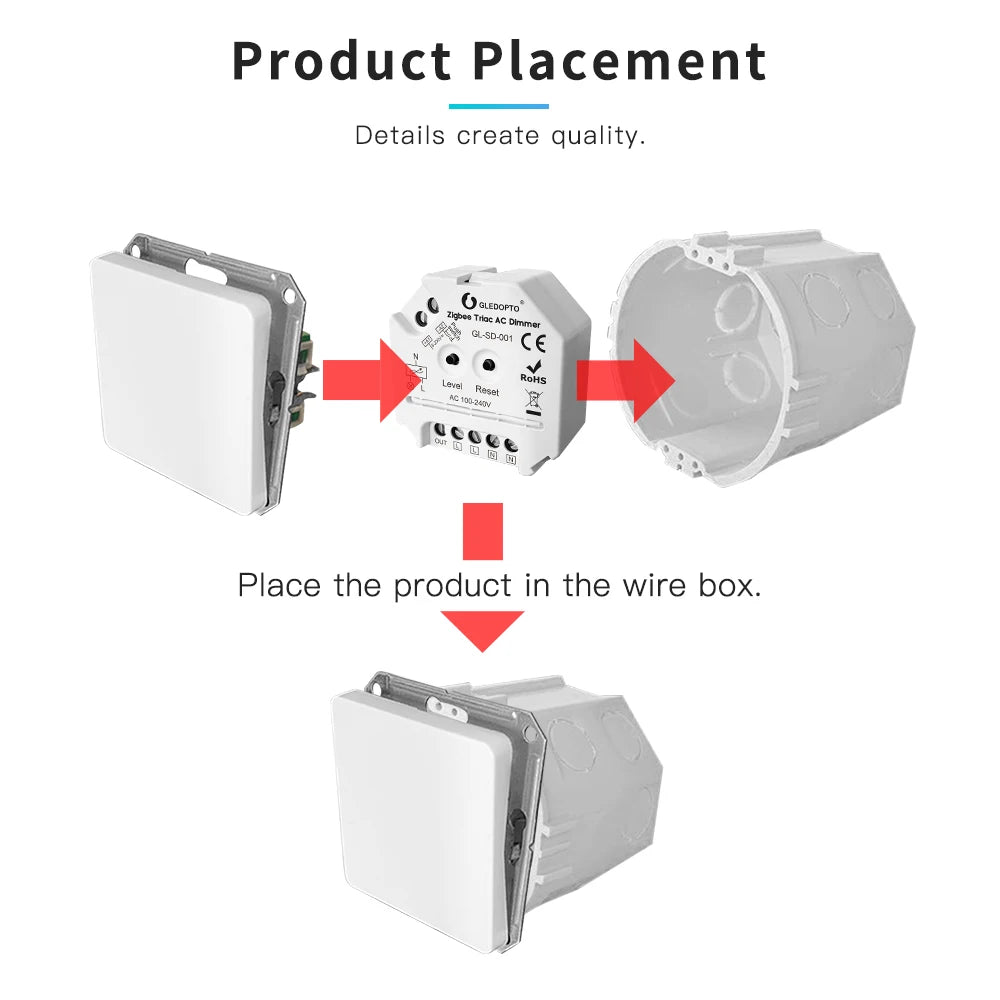

◼ Mini size design, easy for installation into wall switch box.

◼ Input and Output with Screw Terminals, Safe and Reliable.

◼ Minimum brightness set, dimmable from min. to 100% full brightness.

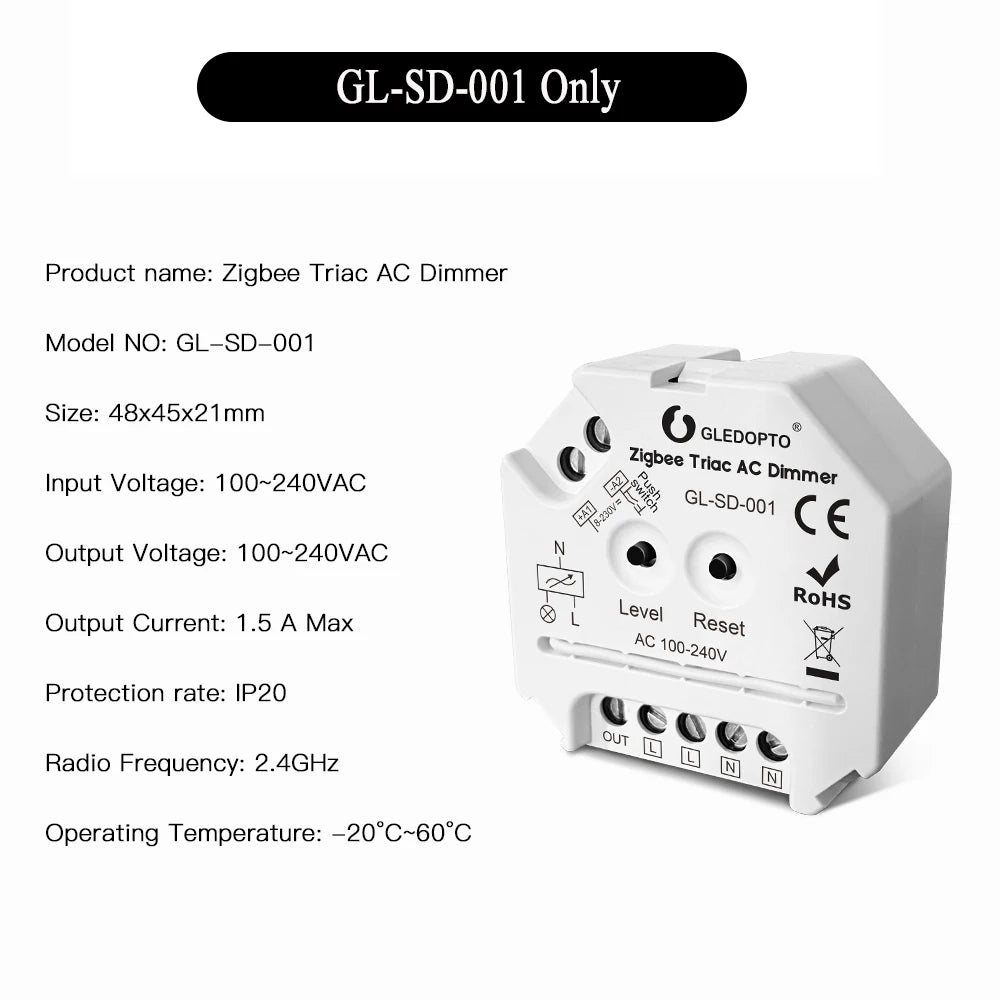

Main Parameters

Product Name: Zigbee Triac AC Dimmer

Model No.: GL-SD-001

Size: 48*45*21mm

Inpute Voltage: AC100-240V

Output Voltage: AC100-240V

Output Current: 1.5A Max

Protecttion Rate: IP20

Radio Frequency: 2.4G Hz

Application

Fit for dimmable LED lights/drivers, incandescent or HV halogen lamps, LV halogen lamps powered by electronic transformer.

Power-off protection;

Overheating protection;

Can be connected high load power(Maximum Load not exceed 400W).

Please kindly note that our zigbee devices(Zigbee/Plus/Pro version Products) require related zigbee gateways.
