SPECIFICATIONS

Certification: CE

Choice: yes

Model Number: mh01/mh02/mh03/mh04

Voltage: 220V

Note:

To install the switch, please confirm the wiring in your home first. When there is no capacitor connected to the L1 light of your switch, please connect to the neutral line (N) of the switch.If you don't know how to wire, please refer to the detail page or the manual

Specification

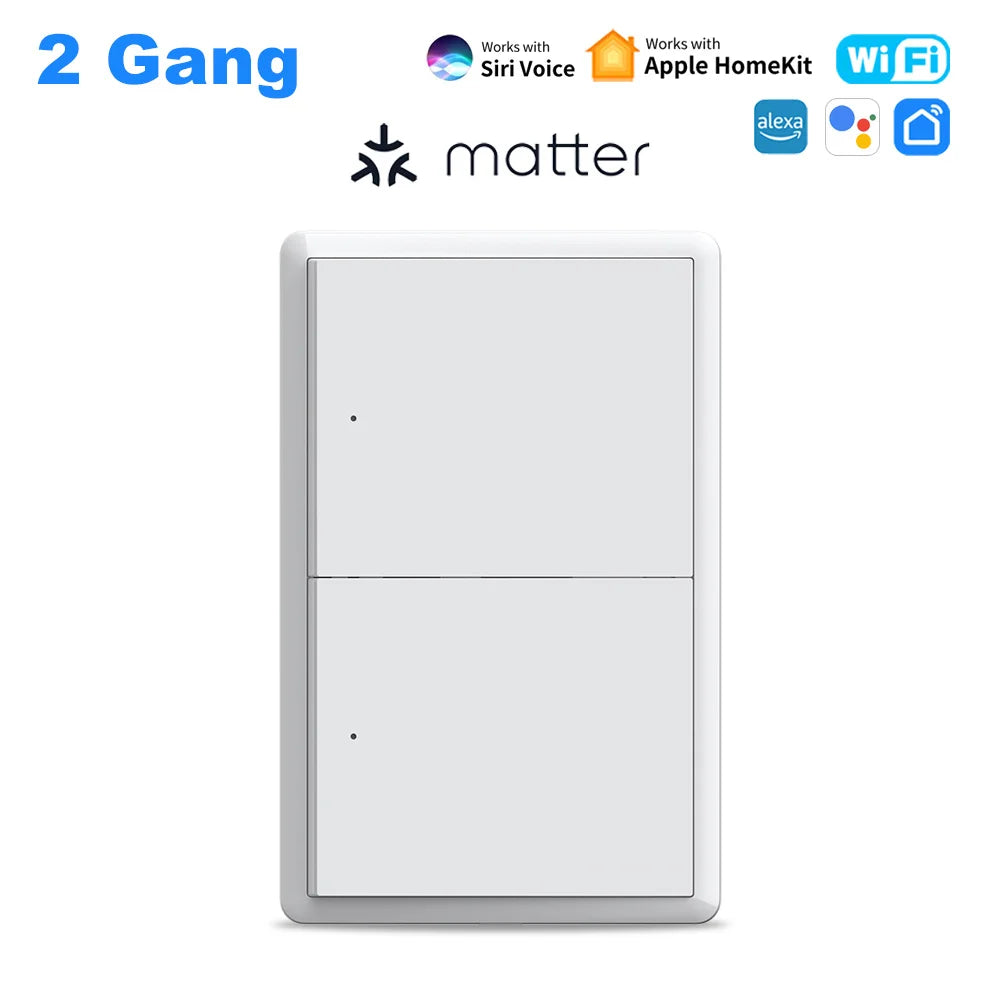

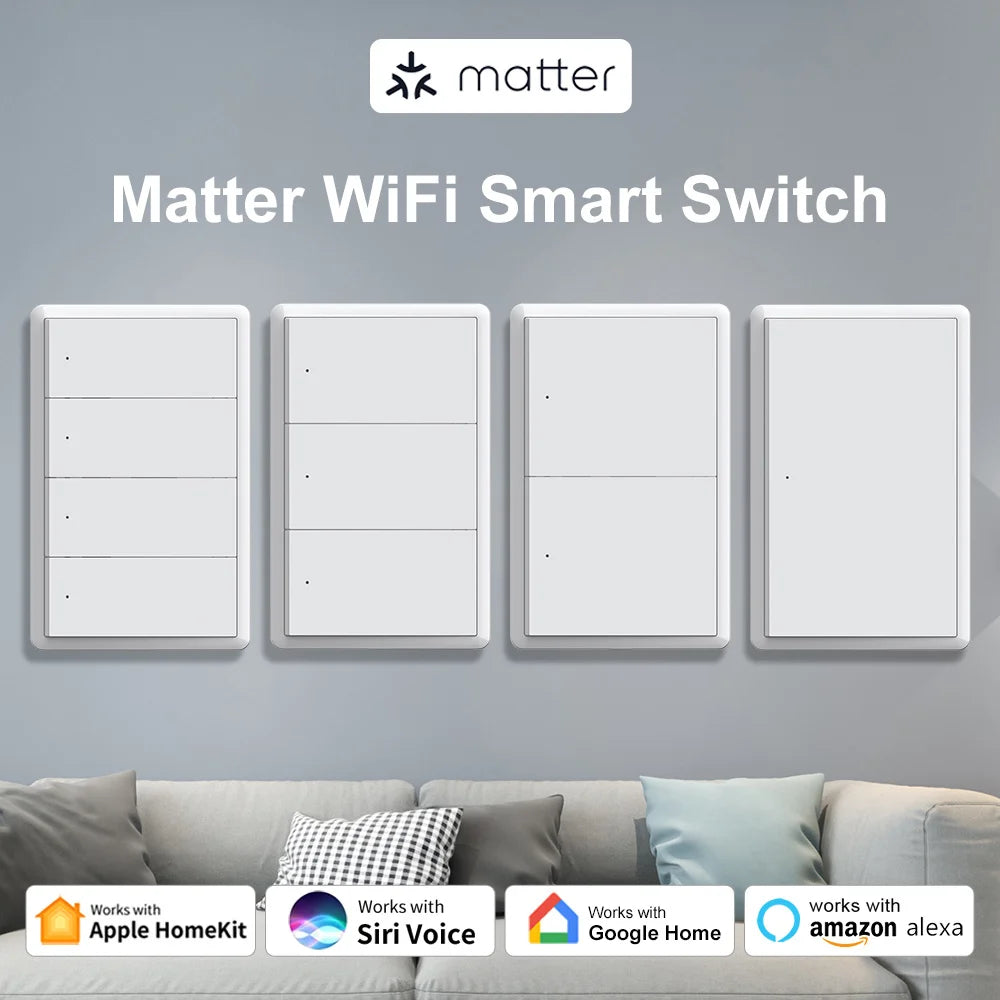

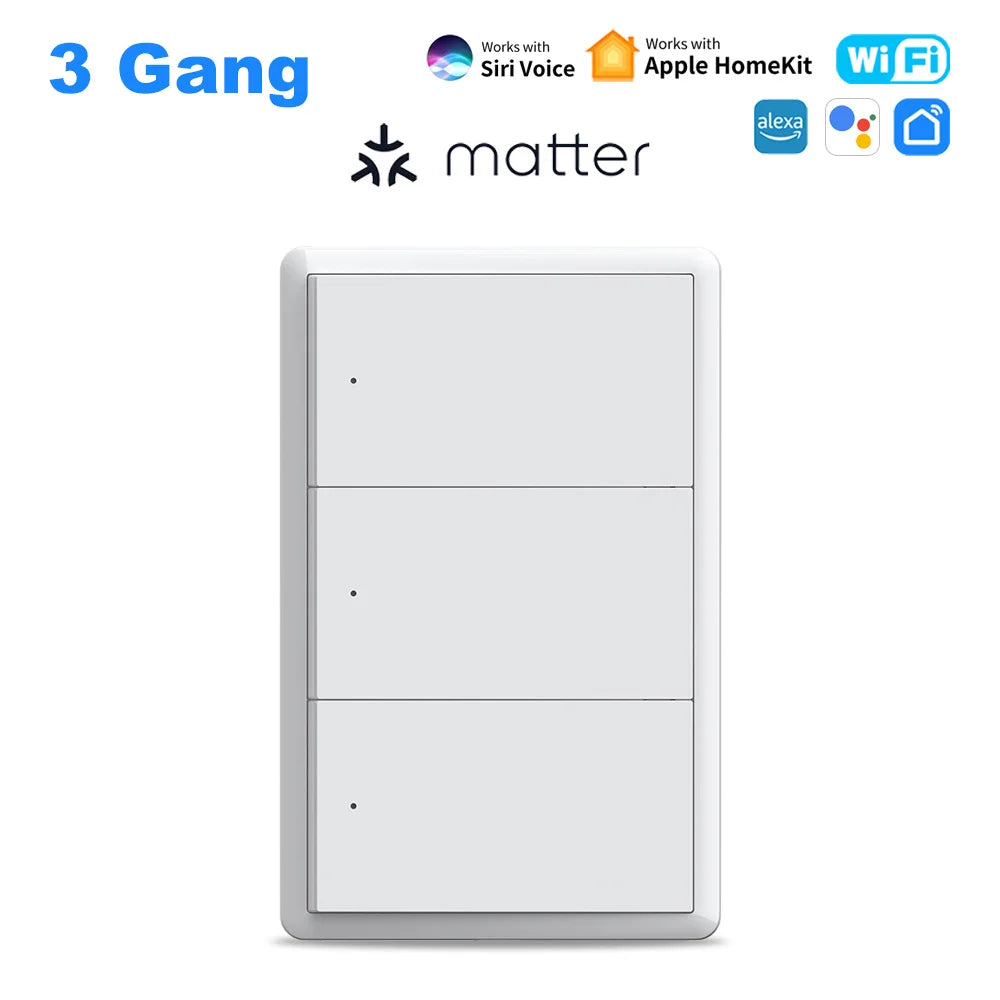

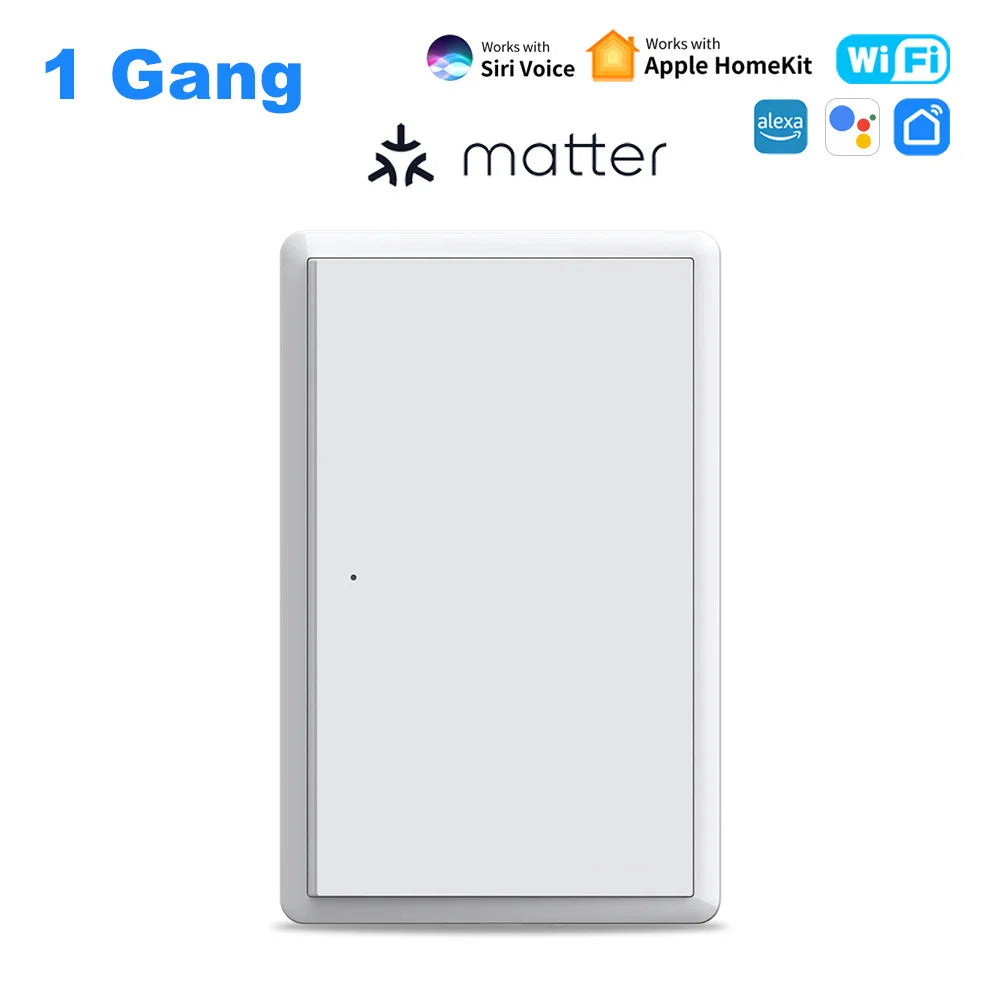

--Product name:Smart wall switch

--Color:white/black

--Specification:MH01-1/MH02-2/MH03-3/MH04-4

--Power supply mode:with neutral wire/no neutral wire

--Wireless standard:wifi 2.4GHz IEEE802.11b/g/n

--Rated voltage:AC100V-240V(50/60Hz)

--Load power:LED:5-150w/gang(max)

--Load power:Incandscent lamp:1200w(max)

--Working environment:-20 -75

--Satic power:0.5W

--Working humidity:<95%

--App support:Apple homekit/smart life/Tuya smart

--Product size:118x75x35mm

Package List

--Smart Switch*1

--User Manual*1

--Screw*2

--capacitance*1

--Iron plate*1
