SPECIFICATIONS

Certification: CE,RoHS

Choice: yes

Detection Angle: 110*110°

Detection Range: 10m

Hign-concerned Chemical: None

Network: ZigBee / Wifi.
input: 85-240VAC.
Working temperature: -10℃~+50℃
Sensitivity: 1-9(default 7)
5.8G Beam Angle:120X120
24G Beam Angle:110X110°
5.8G Sensing distance: 0-11m(default 6m)
24G Sensing distance: 2.5-10m(default 7m)
5.8G Sensing radius: 2.5-3m(Presence),4～5.5m(motion).
24G Sensing radius: 2-3m(Presence),4～4.5m(motion).
Illuminance Sensor: 0～500 Lux（The approximate brightness of the environment in which the sensor is located）.
Departure Delay: 0.5s～25 min；It is recommended to set it to no less than 15S. Otherwise, detection may be missed.
Transmitting Power: 3～5 dBm(5.8G), 10dBm(24G).
Working Humidity: 5～90% RH(No Condensation).
Protection Level: IP20.
Relay Load: Resistive load≤3000W LED≤300W.
circular Size: Φ105mm*28mm/Φ4.13inch*1.1inch

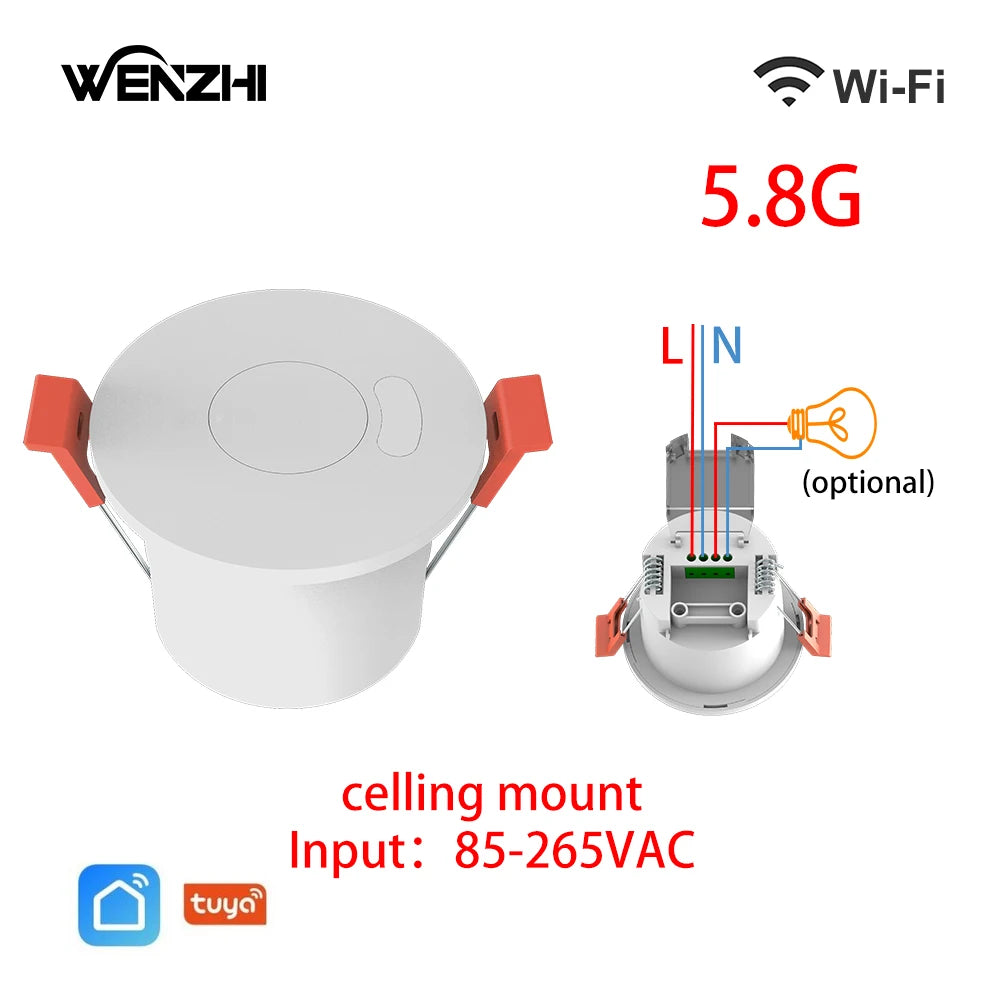

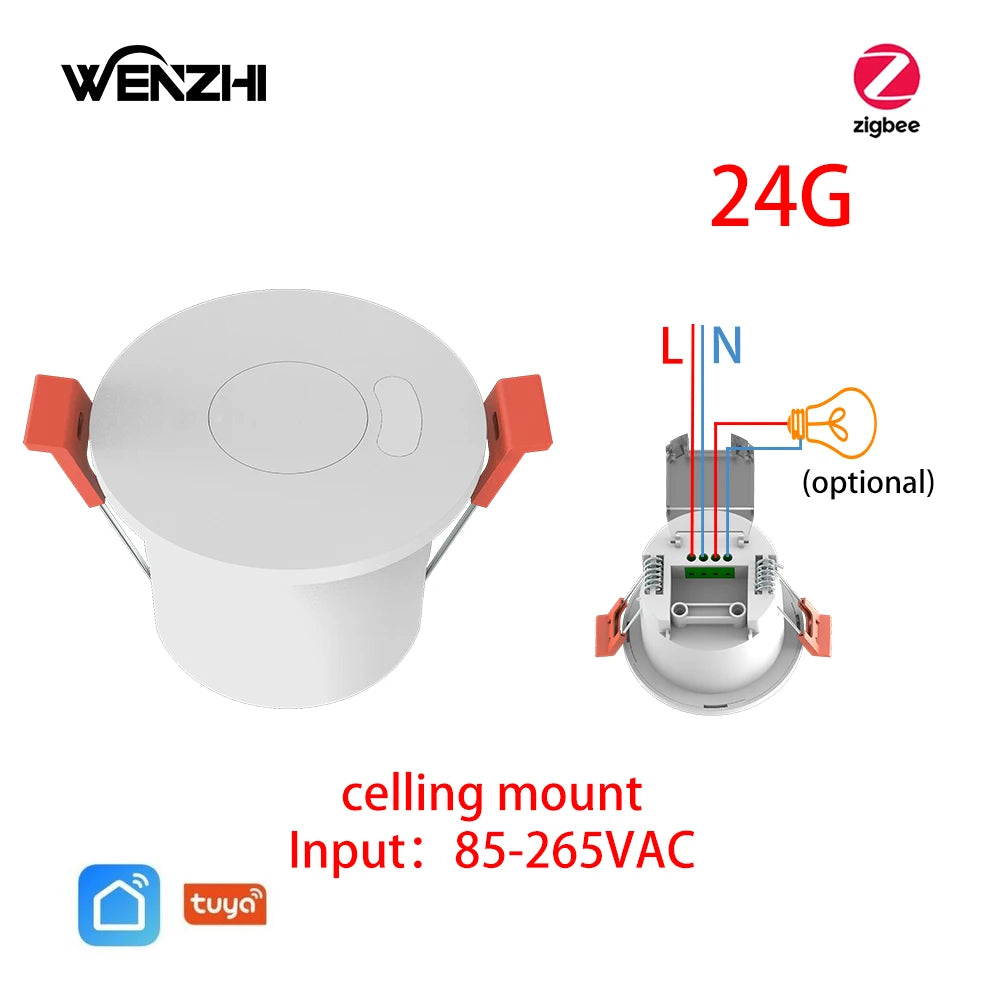

Ceiling Mount Size: Φ75mm*61mm/Φ2.95inch*2.4inch

Package list

Human presence sensor*1
User manual*1
Expansion screws*2(circular)
Double-sided tape*1(circular)

Restricted Usage Scenarios

5.8G: In elevators, metal sealed toilets, and similar all metal
sealed spaces; Scenarios where the plane area of metal
decorative materials outside the non ceiling area exceeds
20%.
24G: The restrictions are not significant.

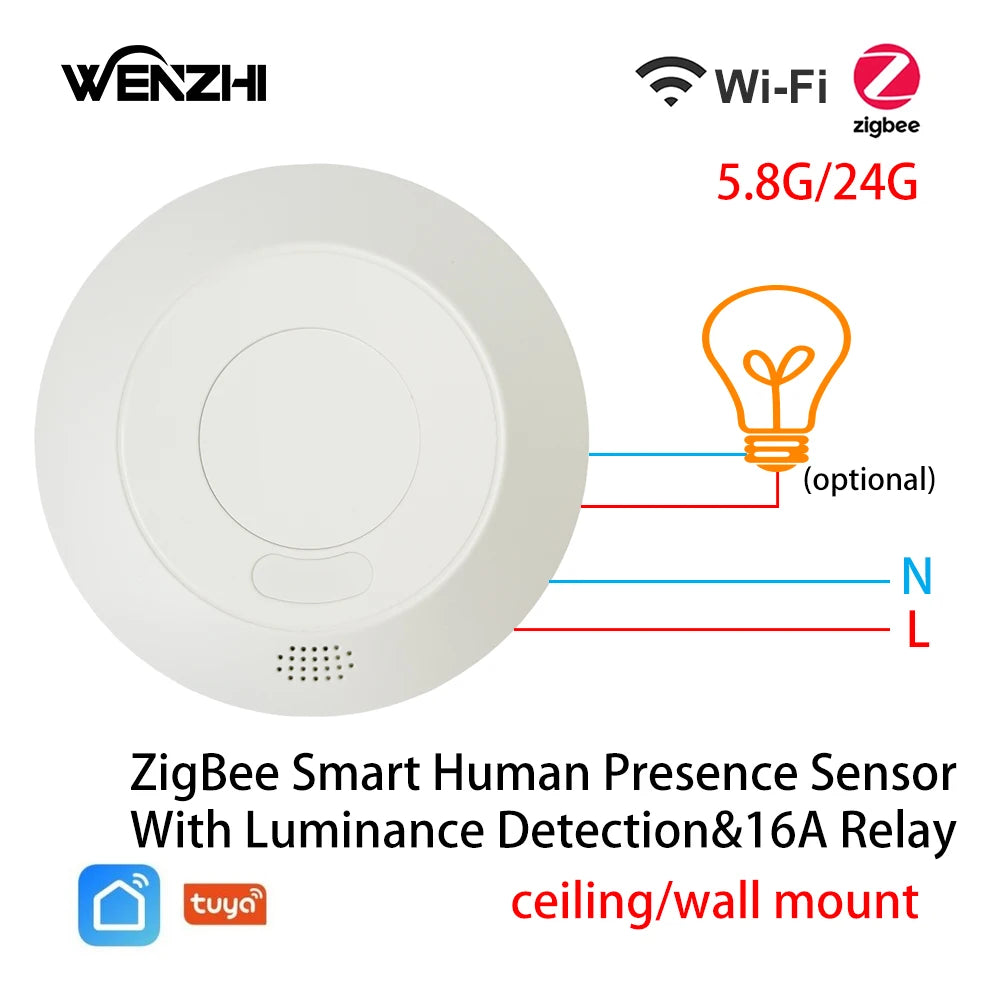

ZigBee3.0/Wifi MmWave Radar Human Body Presence Motion Sensor Light Switch Luminosity Detection 110/220V Tuya Smart Life
