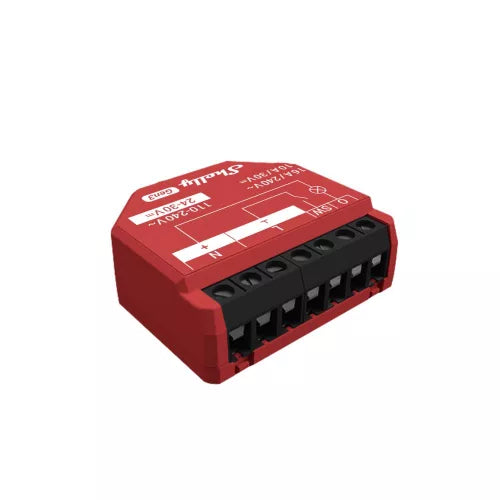

• Shelly 1PM Gen3 single channel smart relay with power meter
1 1

Shelly

Shelly 1PM Gen3 Single-Channel Wi-Fi Smart Relay with Power Meter, 16 A

Shelly 1PM Gen3 Single-Channel Wi-Fi Smart Relay with Power Meter, 16 A

€12,60 EUR
€12,60 EUR
Sale Ausverkauft
Inkl. Steuern. Versand wird beim Checkout berechnet

The Shelly 1PM Gen3 is a WiFi + Bluetooth compatible, wall box mountable, 1-circuit, 16A smart relay module with built-in power meter. It only supports wet contact switching, it can be used to control and measure consumption of lights and power sockets.

Technical details

  • Model: FG3800235261798
  • Protocol: Wi-Fi, Bluetooth
  • Colour: red, with printed drawing
  • Dimensions: 4.1 × 3.6 × 1.5 cm
  • EAN: 3800235261798
Technical data

Model: Shelly 1PM Gen3

Type: Single-channel smart relay with power metering

Protocol: Wi-Fi, Bluetooth, MQTT, REST API, HTTP/HTTPS webhooks

Voltage: 110–240 V AC / 24–30 V DC

Max load: 16 A

Frequency: 50/60 Hz

Range: Wi-Fi range depends on installation environment

Dimensions: Not specified by supplier

IP rating: Not specified by supplier

Vollständige Details anzeigen
