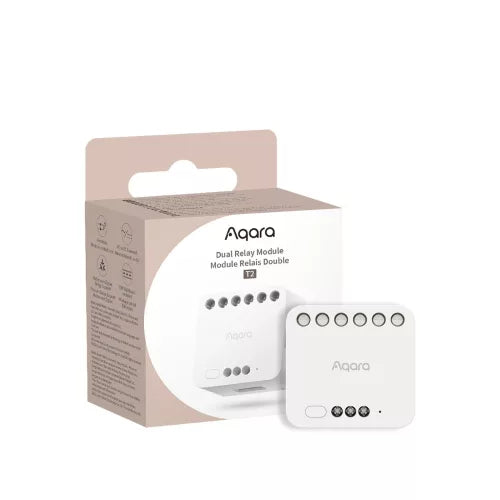

Aqara Dual Relay Module T2 Zigbee dvokanalni relej

Aqara Dual Relay Module T2 Zigbee dvokanalni relej

€27,55 EUR
€27,55 EUR
Sale Ausverkauft
Inkl. Steuern. Versand wird beim Checkout berechnet

The Aqara Dual Relay Module T2 is a dual-circuit smart relay module, using Zigbee 3.0 communication, so it requires a Zigbee central unit (an Aqara hub) for smart features. It is designed to be able to control dry contact or AC and DC voltage switching. Both phase and neutral wires are required for its operation.

Technical details

  • Model: DCM-K01
  • Protocol: Zigbee
  • Colour: white
  • Operating temperature: -10°C – 40°C
  • Dimensions: 4.8 × 4.55 × 0.4 cm
  • EAN: 6970504218635
Technical data

Model: Dual Relay Module T2 / DCM-K01

Type: Dvokanalni pametni relej s mjerenjem potrošnje i dry-contact podrškom

Protocol: Zigbee 3.0, Matter via compatible hub

Voltage: AC 100–250 V / DC 24–60 V

Max load: AC 2500 W resistive; LED/CFL 250 W; motor 1/4 HP; DC up to 300 W

Dimensions: 45.5 × 48 × 24 mm
